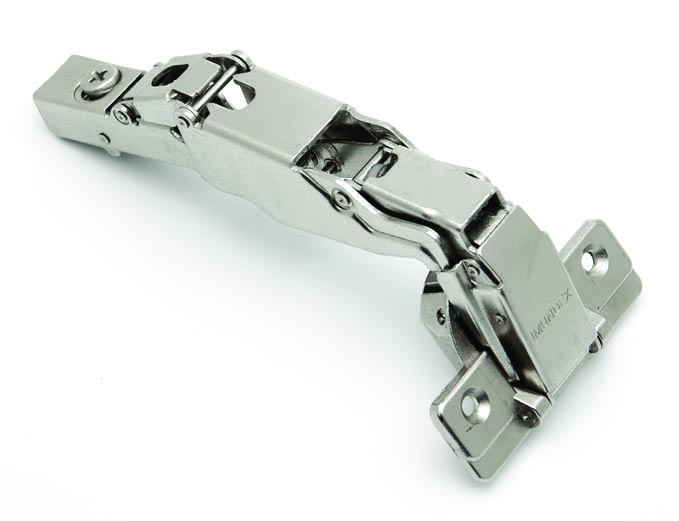

Clip-on soft closing hinge 165 degree_Inset
Inset
Yes
165 degree
14 - 22mm
Steel with nickel plated
Plating thickness: >3μm
Pc
Mounting plate: 7179005
Mouting plate with CAM adjustment: 7179201
Please order the mounting plate separately
Manual document
Installation instructions
