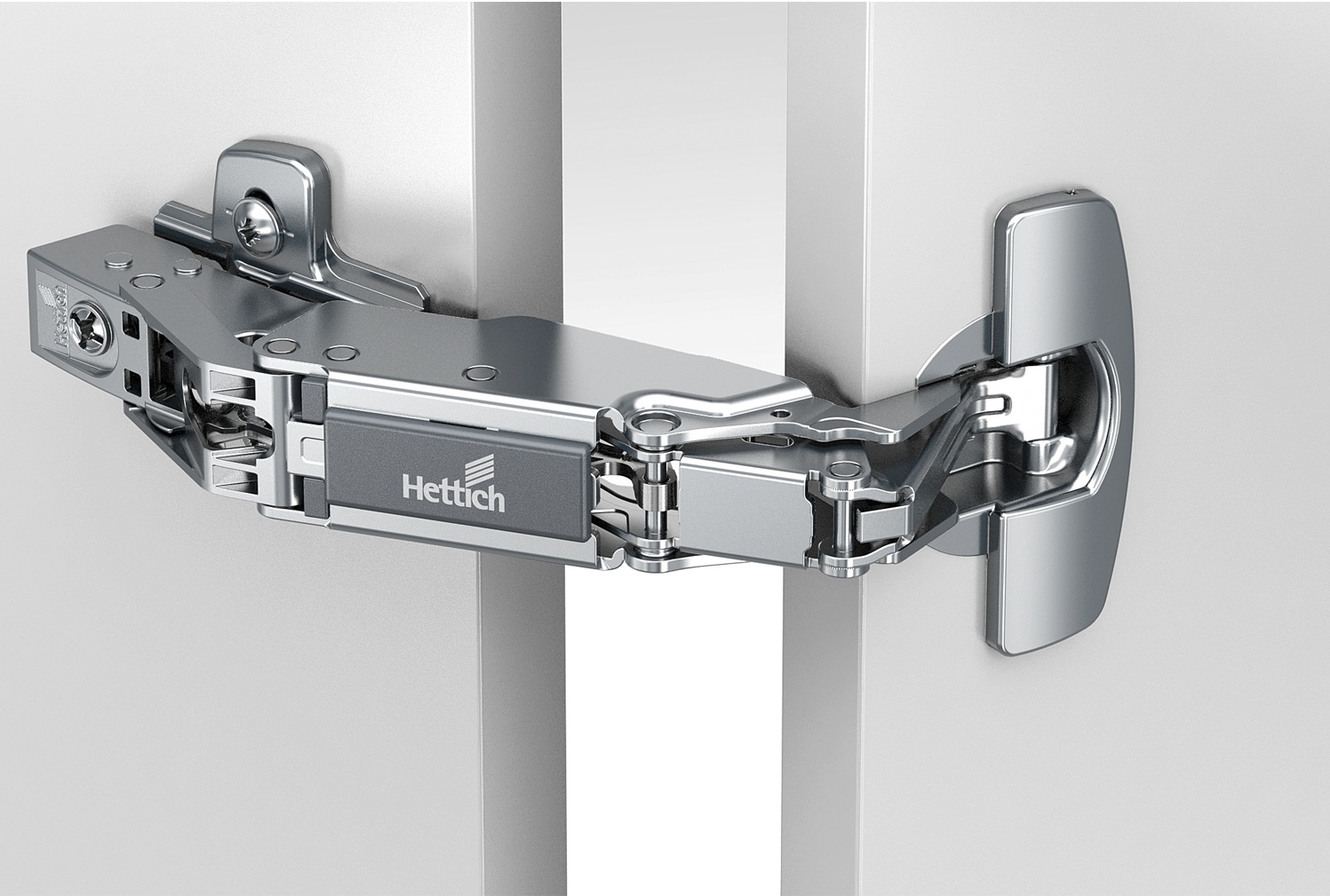

Sensys wide angle hinge, with zero protrusion, with integrated Silent System (Sensys 8657i), Nickel plated, overlay, Opening angle 165°, drilling pattern TB 45 x 9,5 mm , for pressing in (ø 8 x 11)
Manual document
Installation instructions
View 360
Universal Silent System for screwing on full overlay, overlay, half overlay
Silent System hinge cup , full overlay
Silent System for clipping on , inset
Silent System for clipping on , half overlay
Silent System for clipping on , full overlay
Cross mounting plate with Oblong hole height adjustment, Nickel plated, Hole line37 x 32 mm, for screwing on, distance 1.5 mm
Sensys 110° hinge with integrated Silent System (Sensys 8645i), Nickel plated, overlay, Opening angle 110°, drilling pattern TB 45 x 9,5 mm, for pressing in (ø 8 x 11)
Hinge for corner cabinet folding doors without self closing feature (Intermat 9930), Nickel plated, overlay, Opening angle 50° / 65°, drilling pattern TB 45 x 9,5 mm , for pressing in (ø 8 x 11)
Sensys angle hinge W90 with integrated Silent System (Sensys 8639i W90), Nickel plated, inset, Base 4 mm, Opening angle 95°, drilling pattern TB 45 x 9,5 mm , for pressing in (ø 8 x 11)
Sensys thick door hinge, door thickness up to 32 mm, without integrated Silent System (Sensys 8631), Nickel plated, inset, opening angle 95°, for screwing on
