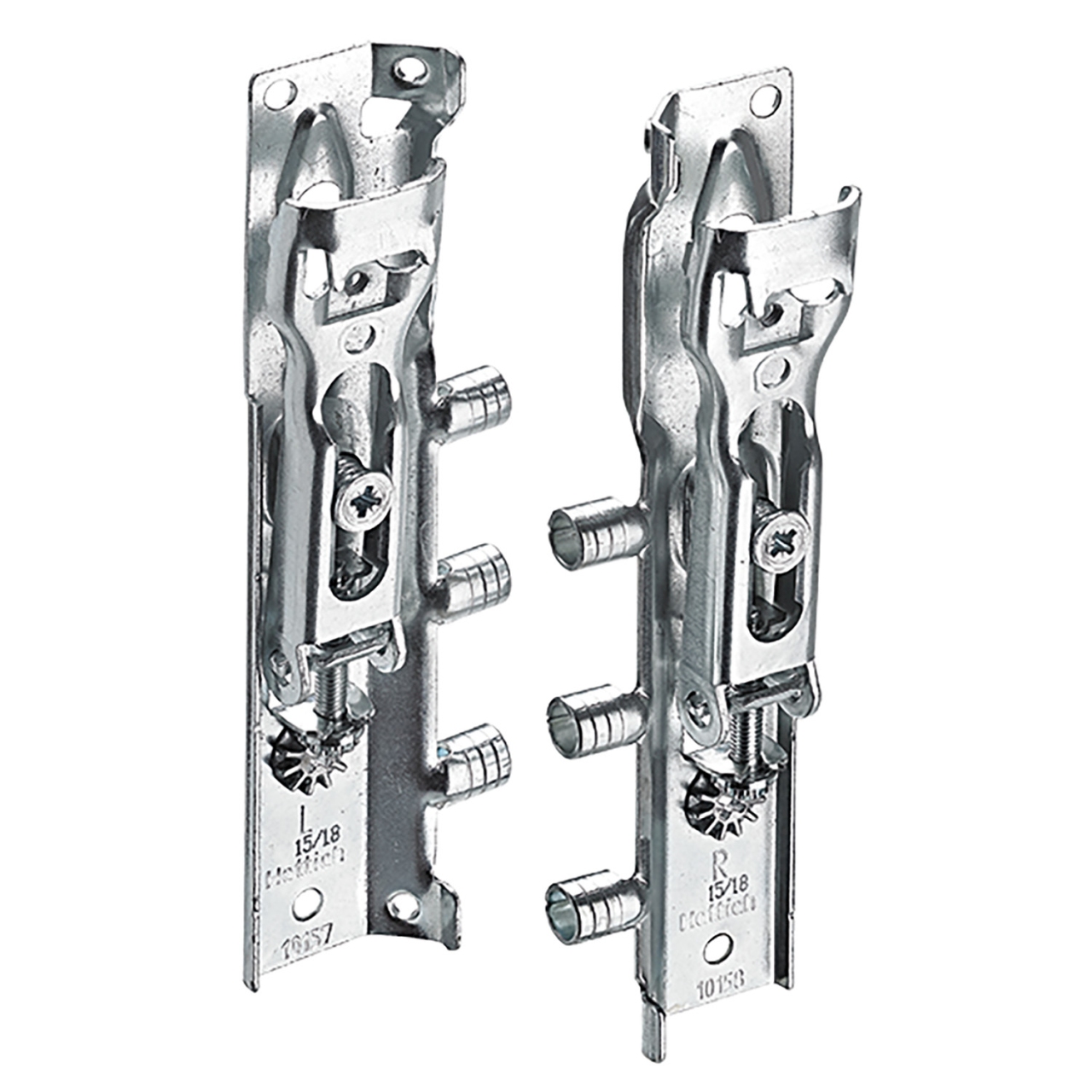

SAH 216 cabinet suspension bracket

• For use on the back of the rear panel
• For rail and hook suspension
• Load capacity: 55 kg / each in accordance with EN 15939 in test frame A
• Attached to the side panel with 3 side pins and screwed into rear panel groove
• Suitable for use with rear panel recess of 16 mm and over
• Fast, convenient height adjustment at sturdy adjustment screw and gear: ± 8 mm
• Depth adjustment: 25 mm max.
• Side adjustment: ± 3 mm for hook suspension, ± 7.5 mm for rail fixing
• Adjustment screws are protected from becoming unscrewed accidentally
• Lift off height: 7.5 mm
• Hook suspension: the shape of the hook prevents the cabinet from slipping off
• Suitable for use with B type suspension rail
• Galvanised steel - fully recyclable
• MUST ALWAYS be screwed into the cabinet body side.
• Optional "lift off guard" function by means of special screw
